SKU: 55501

MANUS

MANUS Metagloves Pro Haptic

MANUS Metagloves Pro Haptic

RRP
€0,00 EUR
€0,00 EUR
Sale Sold out

excl. VAT
View full details

Product details

Switch between the tabs to view content.

Product description

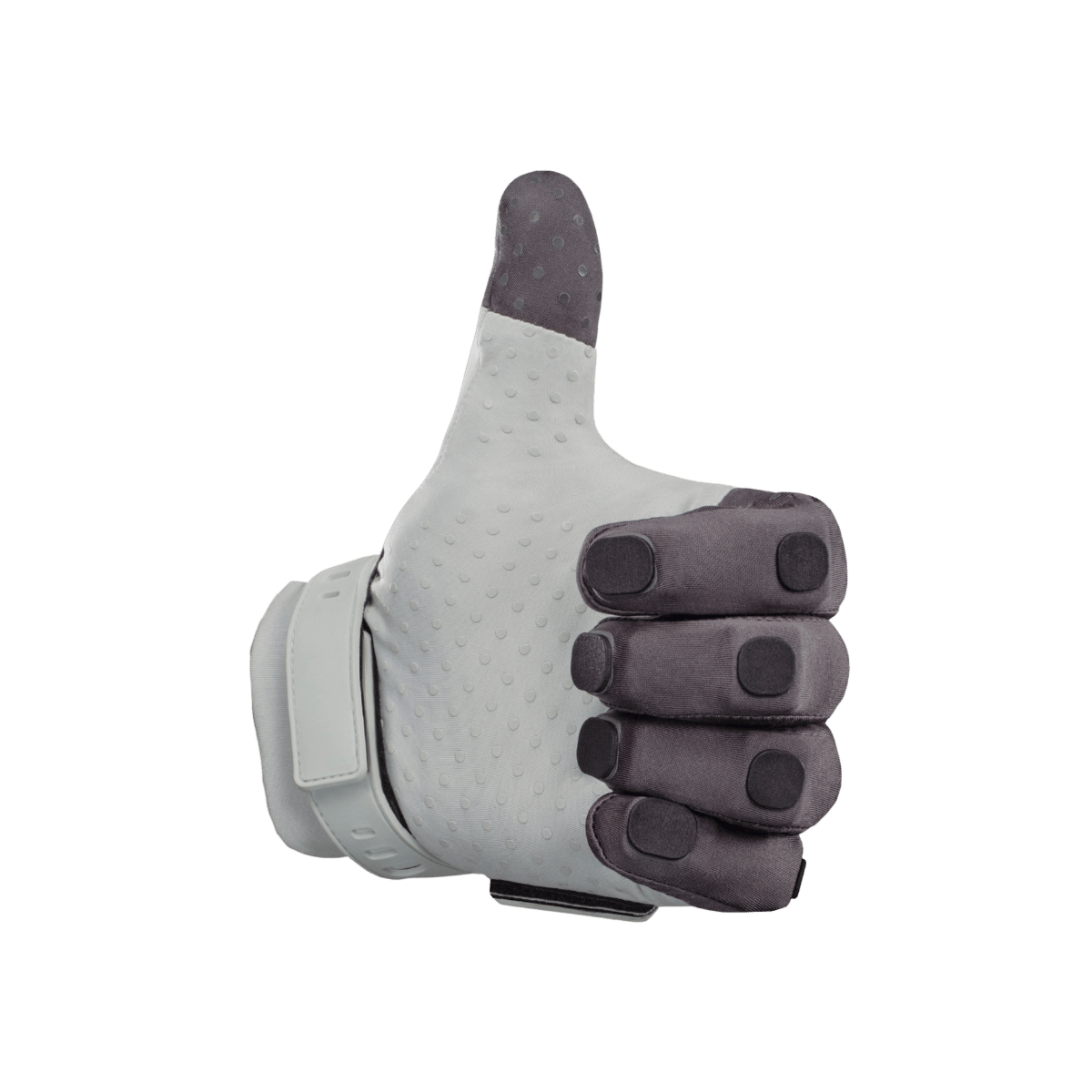

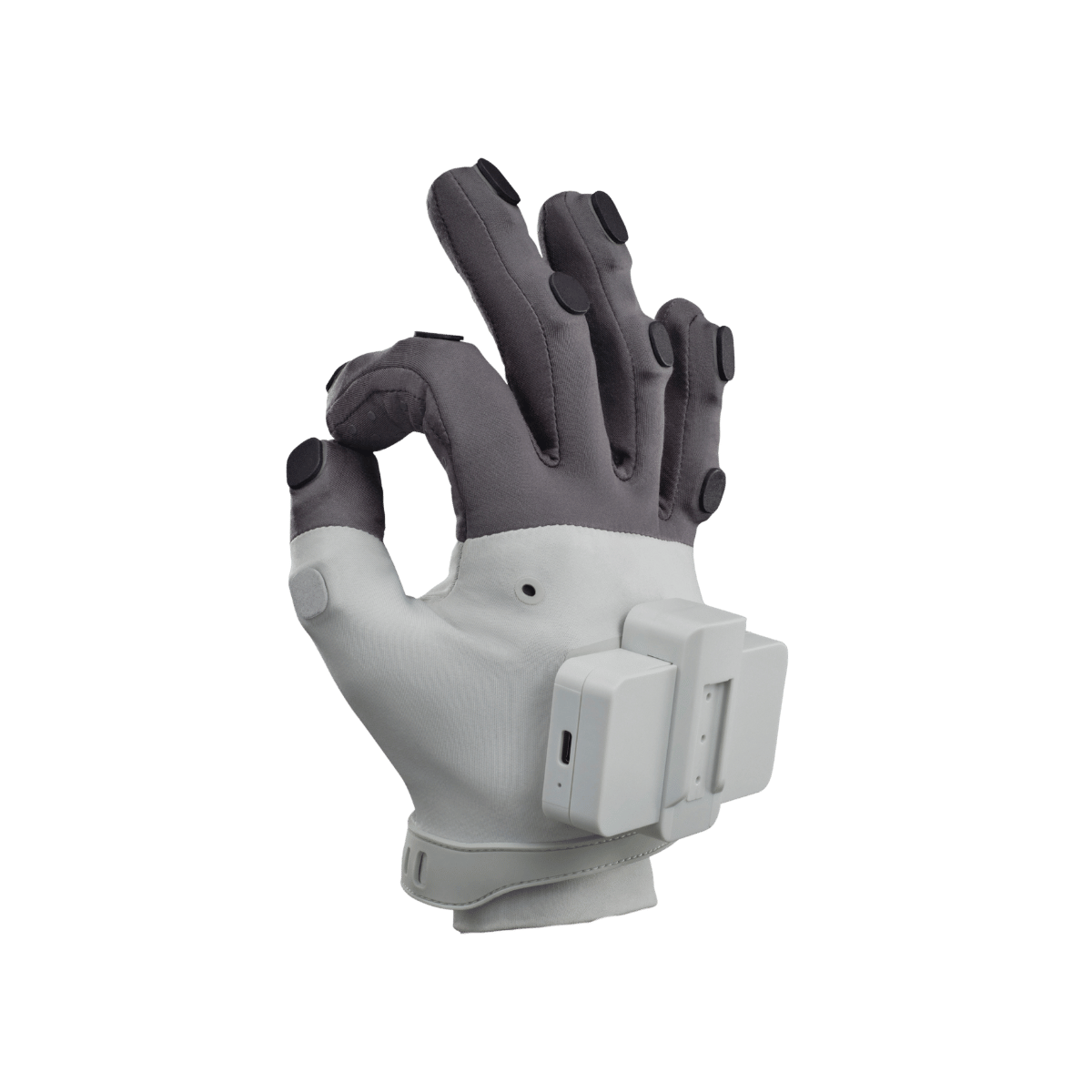

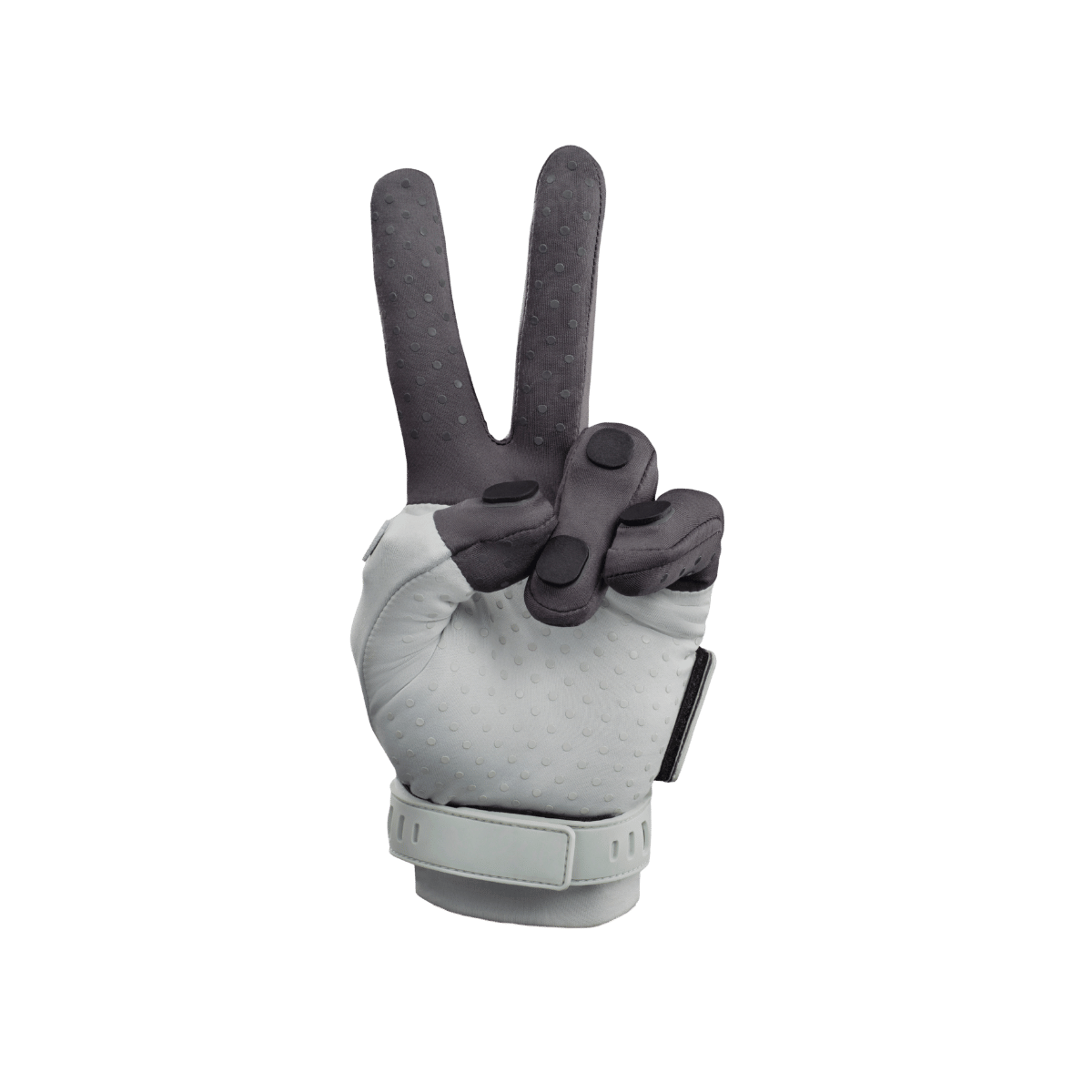

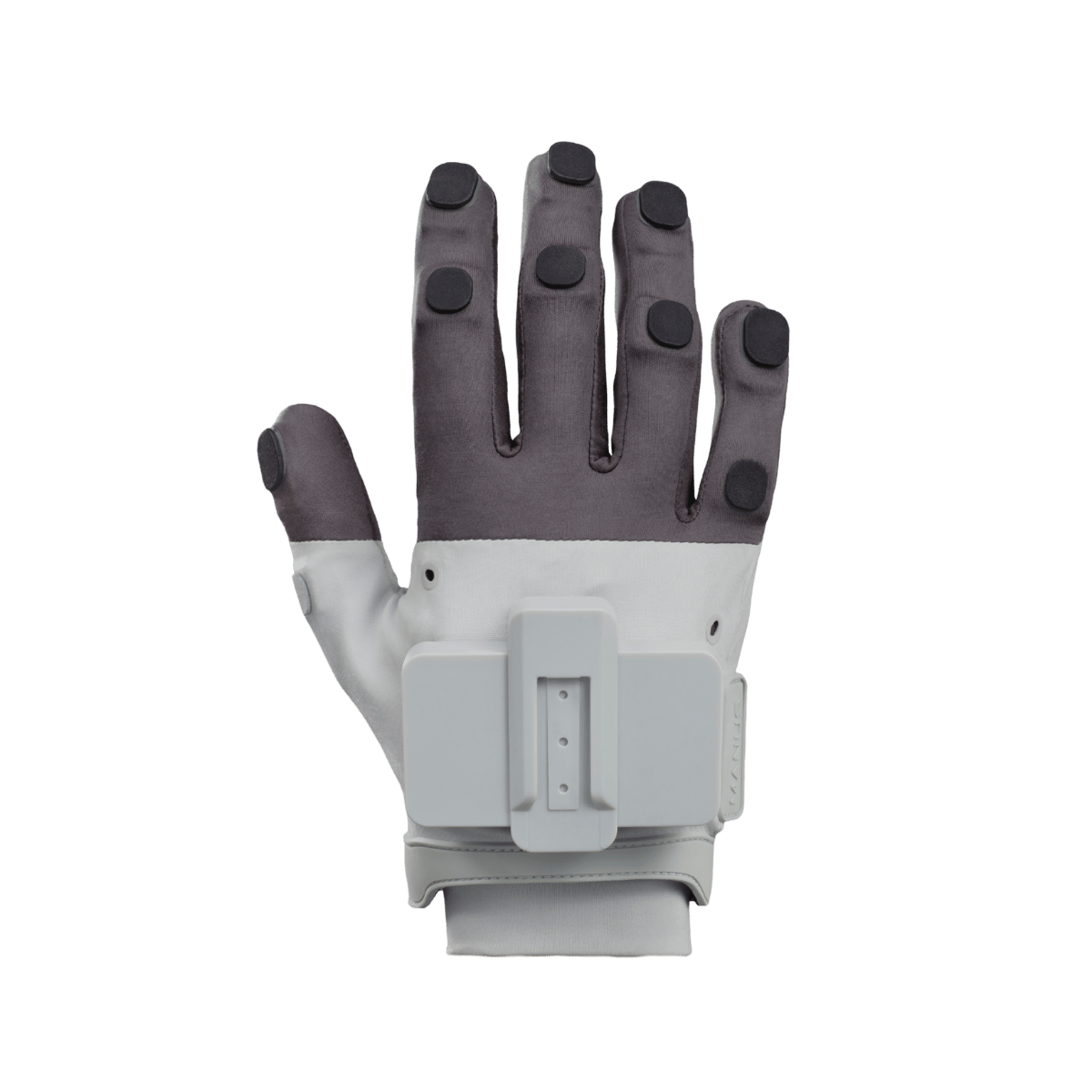

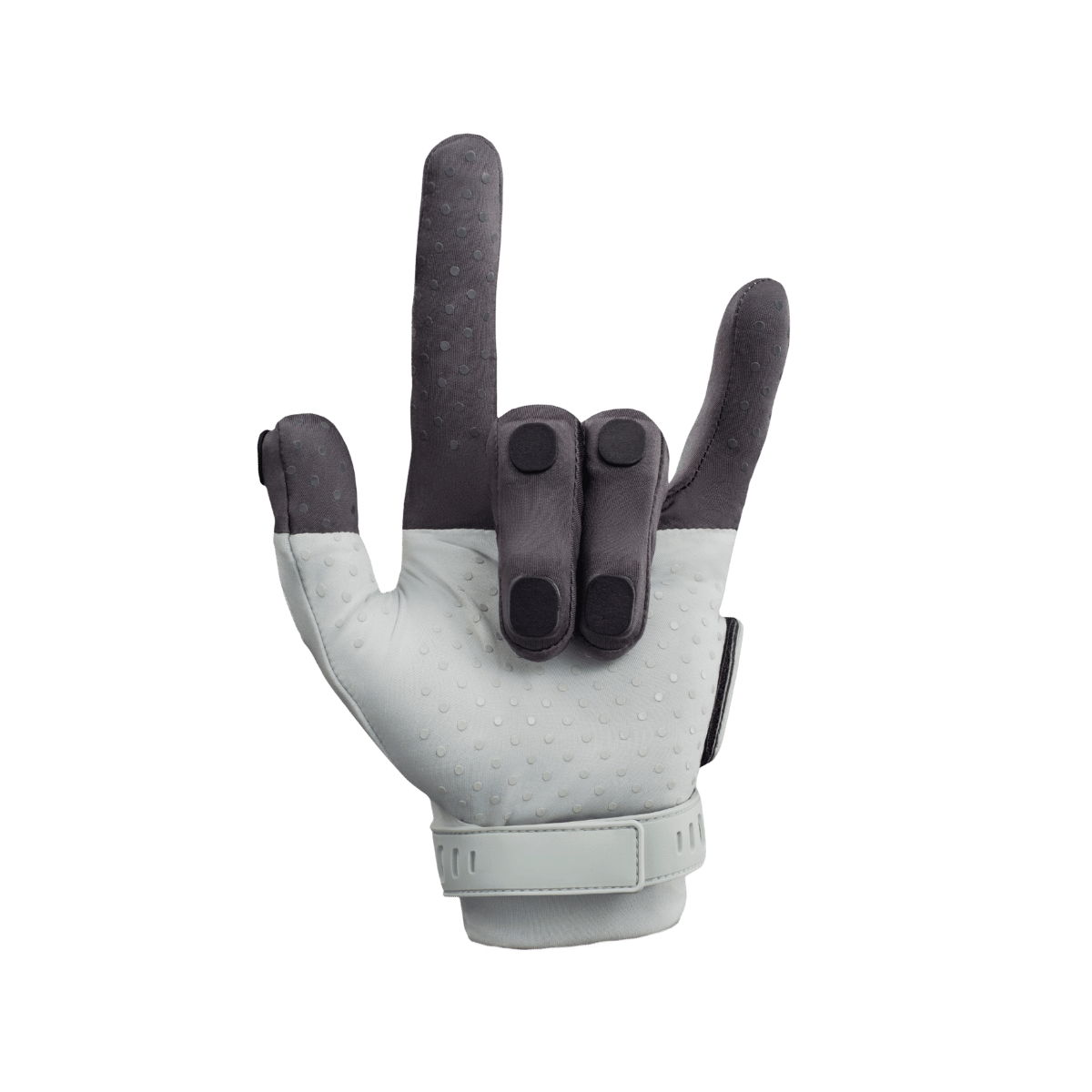

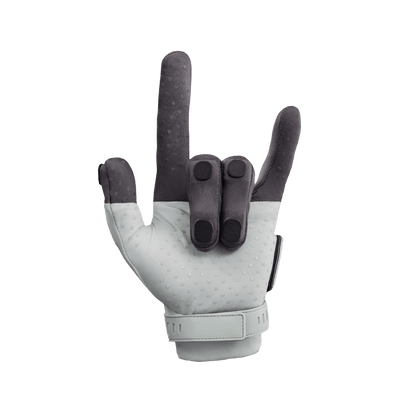

MANUS Metagloves Pro Haptic

The MANUS Metagloves Pro Haptic are professional MANUS data gloves for precise electromagnetic hand tracking. The sensor system provides an anatomical hand model with 25 degrees of freedom and a 120 Hz sampling rate. Five LRA vibration actuators per glove enable vibrotactile feedback when integrated appropriately. The solution is suitable for teleoperated robotic hands, Embodied AI, and immersive XR environments. Available glove sizes: M and L.

Highlights

  • Electromagnetic tracking: Five EMF finger sensors per glove capture finger movements regardless of direct line-of-sight.
  • 25 DOF: The anatomical hand model maps 25 degrees of freedom of the hand.
  • 120 Hz: High sampling rate for capturing dynamic grasping movements.
  • Vibrotactile feedback: Five LRA vibration actuators per glove enable tactile impulses; no force feedback.
  • Flexible connection: Can be used via USB-C or wirelessly with the MANUS Wireless Dongle.
  • Modular design: Sensor Gloves and Top Modules are designed as individual components.

Areas of application

Suitable for teleoperation, precise training of humanoid robots, Embodied AI, and XR applications.

Technical specifications

Feature Value
Tracking method Electromagnetic (EMF)
Hand model 25 degrees of freedom (DOF)
Sampling rate 120 Hz
Motion data latency 30 ms wired / 50 ms wireless (motion-to-data)
Connection USB 2.0 Type-C / Bluetooth 5.0 via MANUS dongle
Wireless range Up to 15 m, depending on the environment
Battery life Up to 3 hours, depending on usage
Glove sizes M and L
Haptic technology 5 LRA vibration motors per glove
Haptic feedback 1-dimensional vibrotactile feedback
Haptic latency 4 ms wired / 16 ms wireless
Weight reference 178 g per glove, size M including battery

Included in delivery

  • 1 pair of MANUS Metagloves Pro Haptic Sensor Gloves, size as ordered
  • 1 pair of MANUS Metagloves Pro Haptic Top Modules
  • 1 MANUS Wireless Dongle
  • 2 matching batteries
  • 2 USB-C cables
  • 1 quick start guide
  • 1 transport case

Notes

The vibrotactile feedback is not a mechanical force resistance. The runtime and latency specifications are manufacturer values under specific conditions. For robot hand integration, check interfaces, software licenses, and target systems. Included items and license activation may vary depending on the configuration.
